OUR PRODUCTS

ARCHITECTURAL FILMS
Product Code
NF CERAMIC 40
Product Specifications:
Category
Architectural / Automobile
Series
Nano Ceramic
Construction:
Thickness
2ply / 2 Mil
Technology
Advanced Nanoceramic
Color
Light Grey
Adhesive
Pressure Adhesive
Warranty
10 Years
Solar Performance:
Visible Light Transmittance 40%
Ultra Violet Rejection 99%
Infrared Rejection (1400nm) 55%
Infrared Rejection (940nm) 57%
Full Infrared Rejection 56%
Solar Heat Gain Coefficient 0.39
Total Solar Energy Rejected 61%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.
Product Code

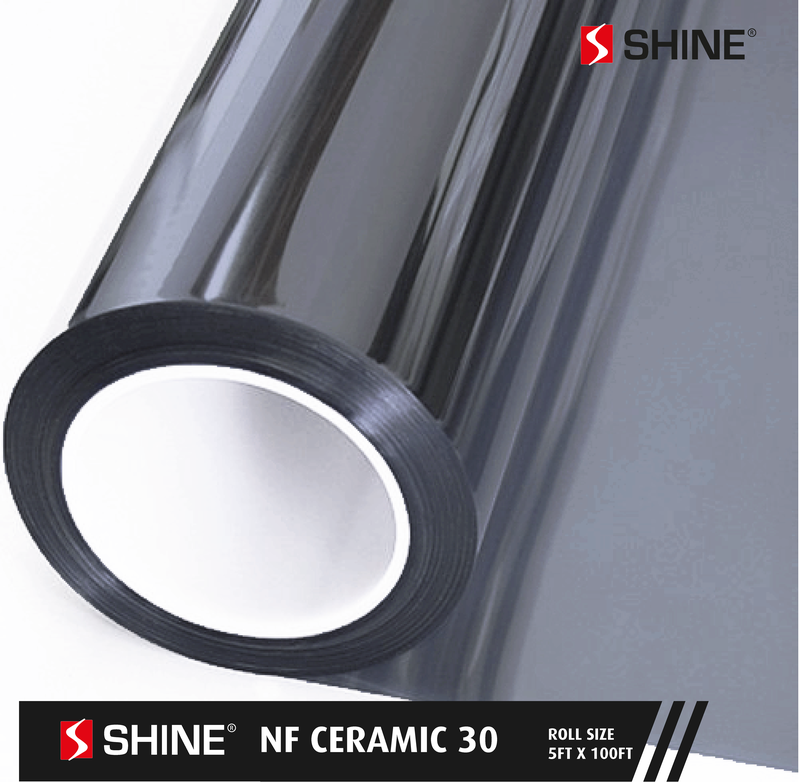

NF CERAMIC 30
Product Specifications:
Category
Architectural / Automobile
Series
Nano Ceramic
Construction:
Thickness
2ply / 2 Mil
Technology
Advanced Nanoceramic
Color
Medium Grey
Adhesive
Pressure Adhesive
Warranty
10 years
Solar Performance:
Visible Light Transmittance 30%
Ultra Violet Rejection 99%
Infrared Rejection (1400nm) 64%
Infrared Rejection (940nm) 65%
Full Infrared Rejection 65%
Solar Heat Gain Coefficient 0.30
Total Solar Energy Rejected 70%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.
Product Code

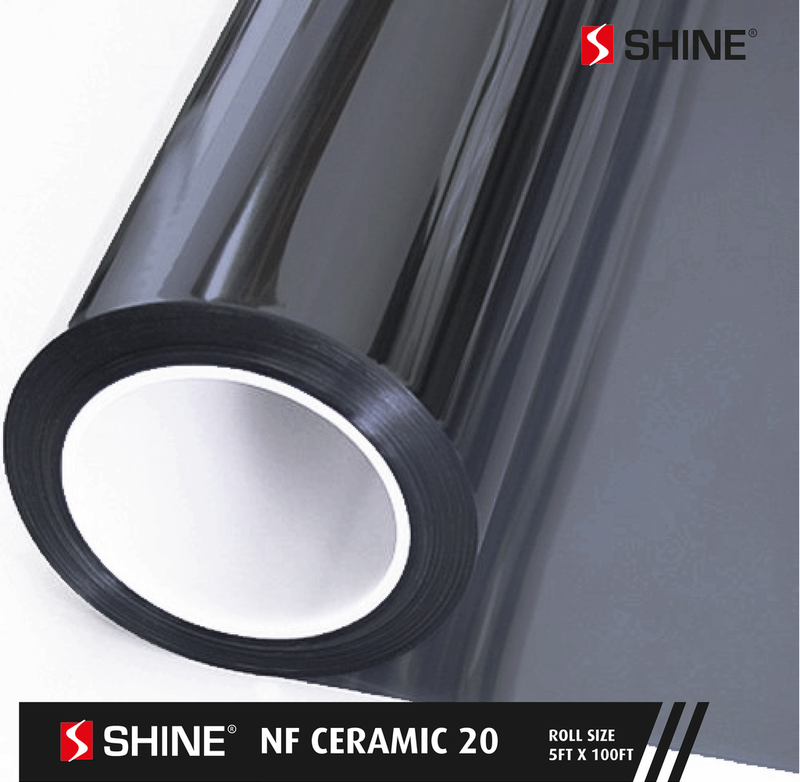

NF CERAMIC 20
Product Specifications:
Category
Architectural / Automobile
Series
Nano Ceramic
Construction:
Thickness
2ply / 2 Mil
Technology
Advanced Nanoceramic
Color
Medium Grey
Adhesive
Pressure Adhesive
Warranty
10 Years
Solar Performance:
Visible Light Transmittance 20%
Ultra Violet Rejection 99%
Infrared Rejection (1400nm) 72%
Infrared Rejection (940nm) 72%
Full Infrared Rejection 72%
Solar Heat Gain Coefficient 0.25
Total Solar Energy Rejected 75%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.
Product Code

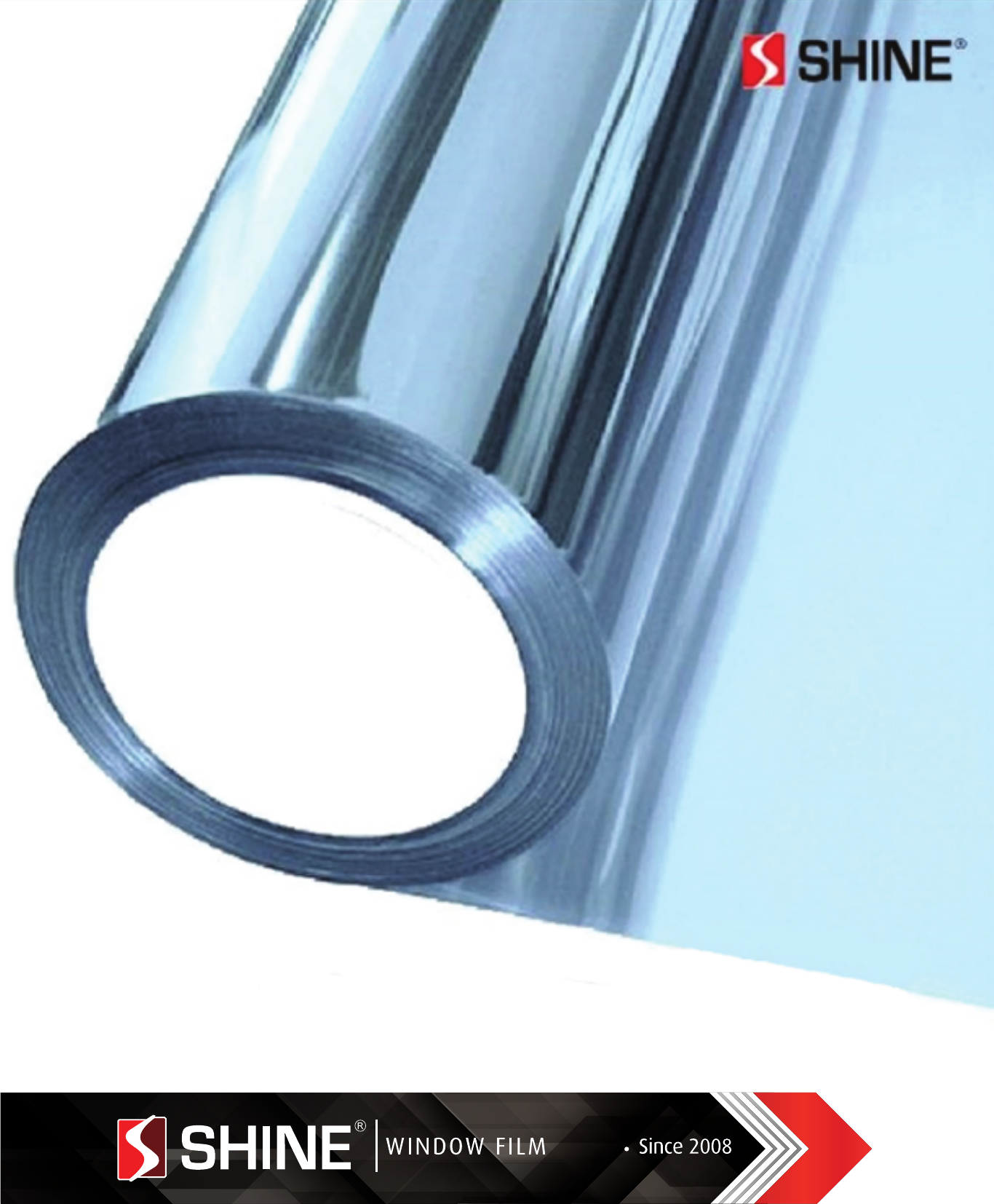

NANO CERAMIC 70
Product Specifications:
Category
Architectural / Automobile
Series
Nano Ceramic
Construction:
Thickness
2 Mil
Technology
Vapor Deposition
Color
Light Blue
Adhesive
Dry Adhesive
Warranty
5 Years
Solar Performance:
Visible Light Transmittance 70%
Ultra Violet Rejection 99%
Infrared Rejection (1400nm) 95%
Infrared Rejection (940nm) 91%
Full Infrared Rejection 93%
Solar Heat Gain Coefficient 0.44
Total Solar Energy Rejected 56%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.
Product Code

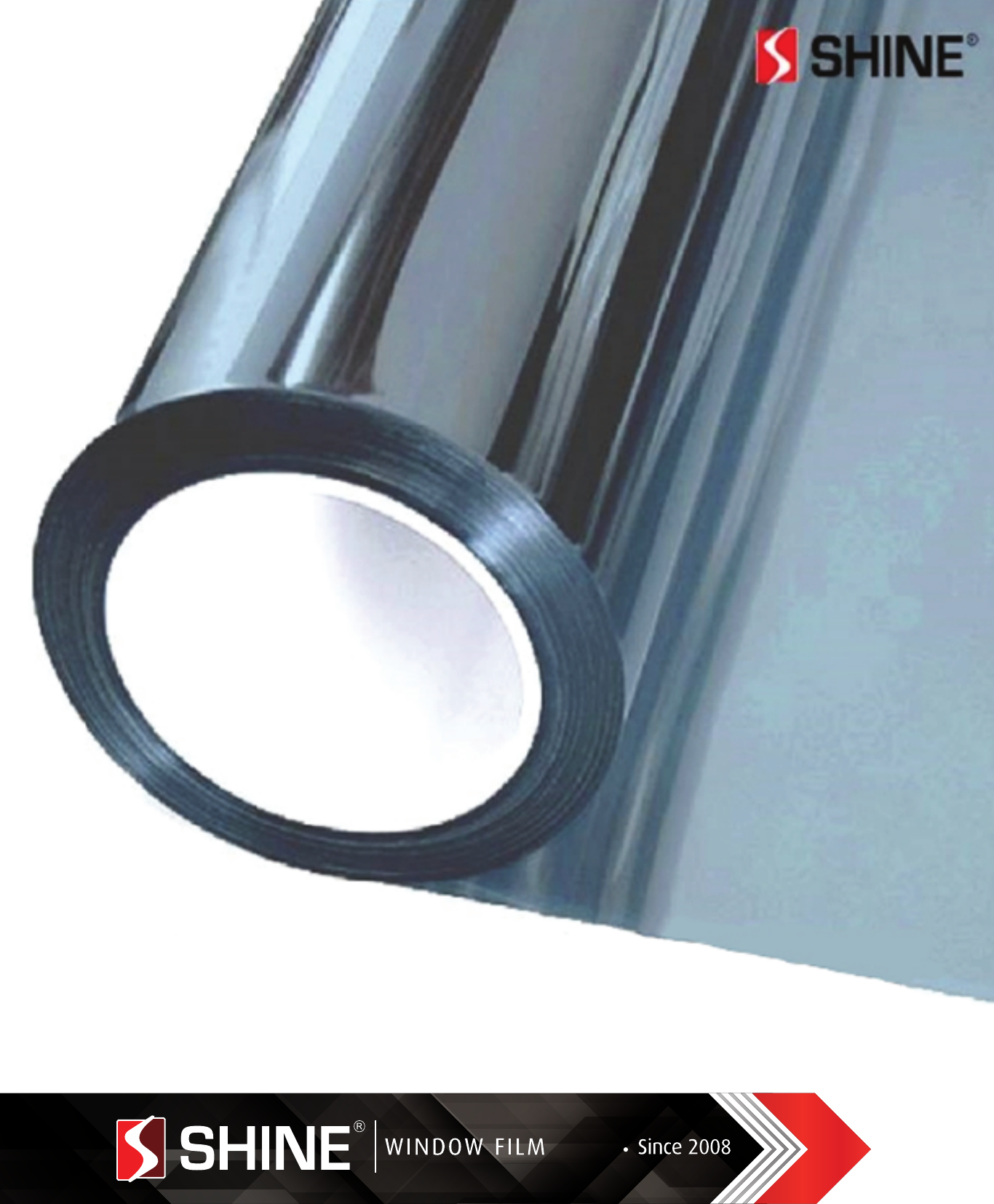

NANO CERAMIC 50
Product Specifications:
Category
Architectural / Automobile
Series
Nano Ceramic
Construction:
Thickness
2 Mil
Technology
Vapor Deposition
Color
Light Grey
Adhesive
Dry Adhesive
Warranty
5 Years
Solar Performance:
Visible Light Transmittance 50%
Ultra Violet Rejection 99%
Infrared Rejection (1400nm) 94%
Infrared Rejection (940nm) 90%
Full Infrared Rejection 92%
Solar Heat Gain Coefficient 0.33
Total Solar Energy Rejected 67%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.
Product Code

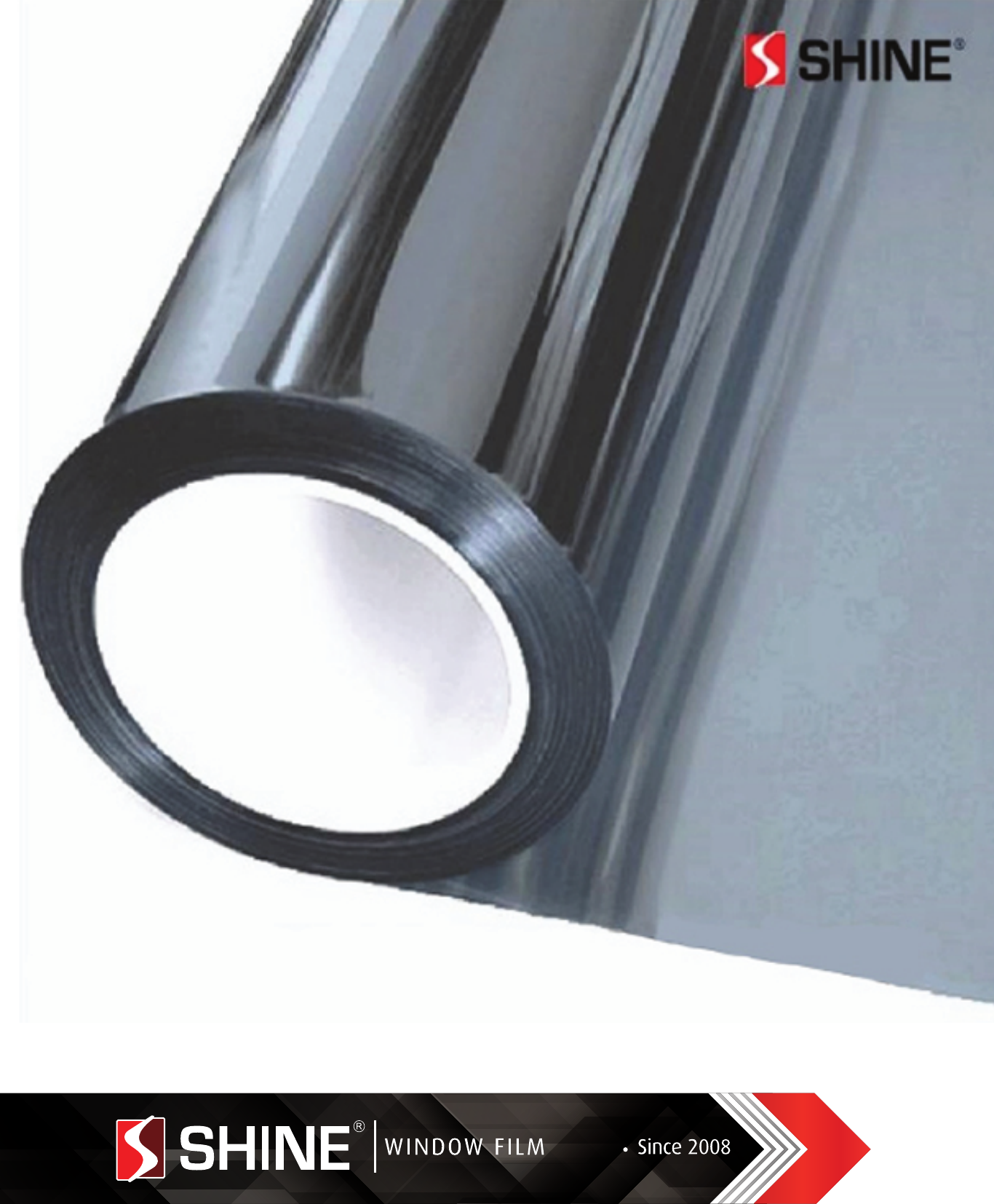

NANO CERAMIC 35
Product Specifications:
Category
Architectural / Automobile
Series
Nano Ceramic
Construction:
Thickness
2 Mil
Technology
Vapor Deposition
Color
Medium Grey
Adhesive
Dry Adhesive
Warranty
5 Years
Solar Performance:
Visible Light Transmittance 35%
Ultra Violet Rejection 99%
Infrared Rejection (1400nm) 95%
Infrared Rejection (940nm) 92%
Full Infrared Rejection 94%
Solar Heat Gain Coefficient 0.25
Total Solar Energy Rejected 75%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.
Product Code

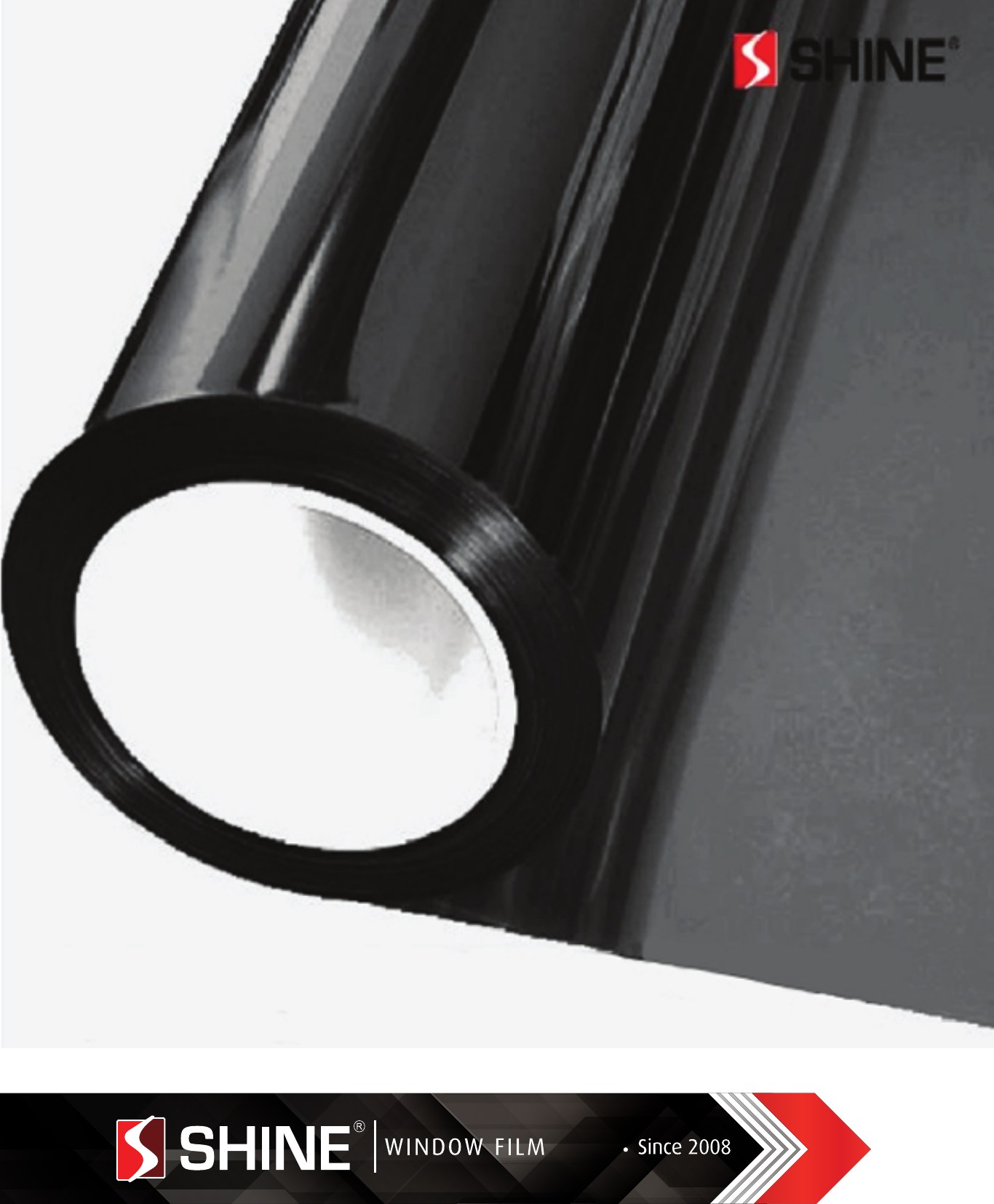

NANO CERAMIC 15
Product Specifications:
Category
Architectural / Automobile
Series
Nano Ceramic
Construction:
Thickness
2 Mil
Technology
Vapor Deposition
Color
Medium Grey
Adhesive
Dry Adhesive
Warranty
5 Years
Solar Performance:
Visible Light Transmittance 15%
Ultra Violet Rejection 99%
Infrared Rejection (1400nm) 95%
Infrared Rejection (940nm) 88%
Full Infrared Rejection 92%
Solar Heat Gain Coefficient 0.12
Total Solar Energy Rejected 88%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.
Product Code

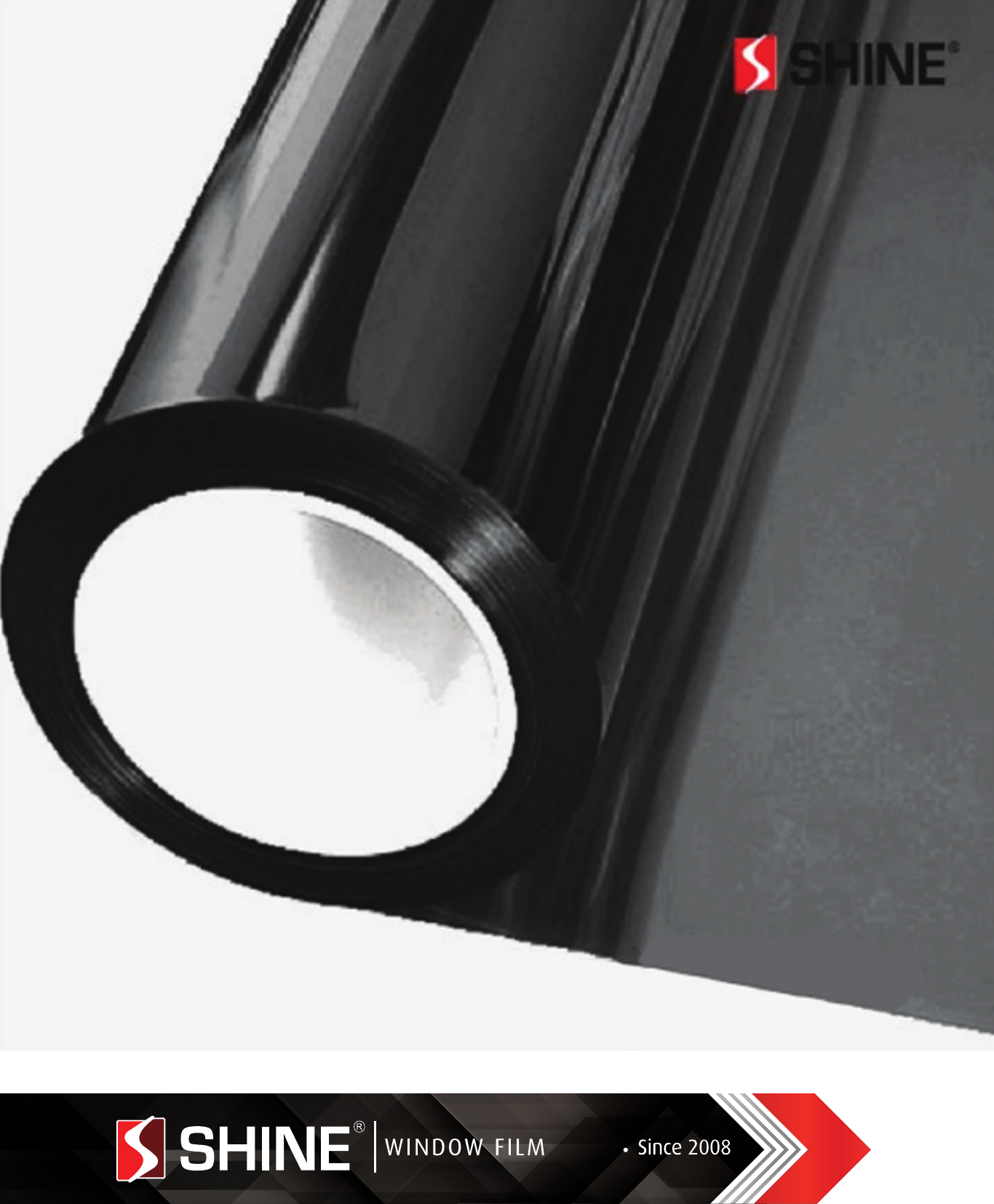

NANO CERAMIC 05
Product Specifications:
Category
Architectural / Automobile
Series
Nano Ceramic
Construction:
Thickness
2 Mil
Technology
Vapor Deposition
Color
Dark Grey
Adhesive
Dry Adhesive
Warranty
5 Years
Solar Performance:
Visible Light Transmittance 5%
Ultra Violet Rejection 99%
Infrared Rejection (1400nm) 94%
Infrared Rejection (940nm) 90%
Full Infrared Rejection 92%
Solar Heat Gain Coefficient 0.07
Total Solar Energy Rejected 93%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.
