OUR PRODUCTS

ARCHITECTURAL FILMS
Product Code

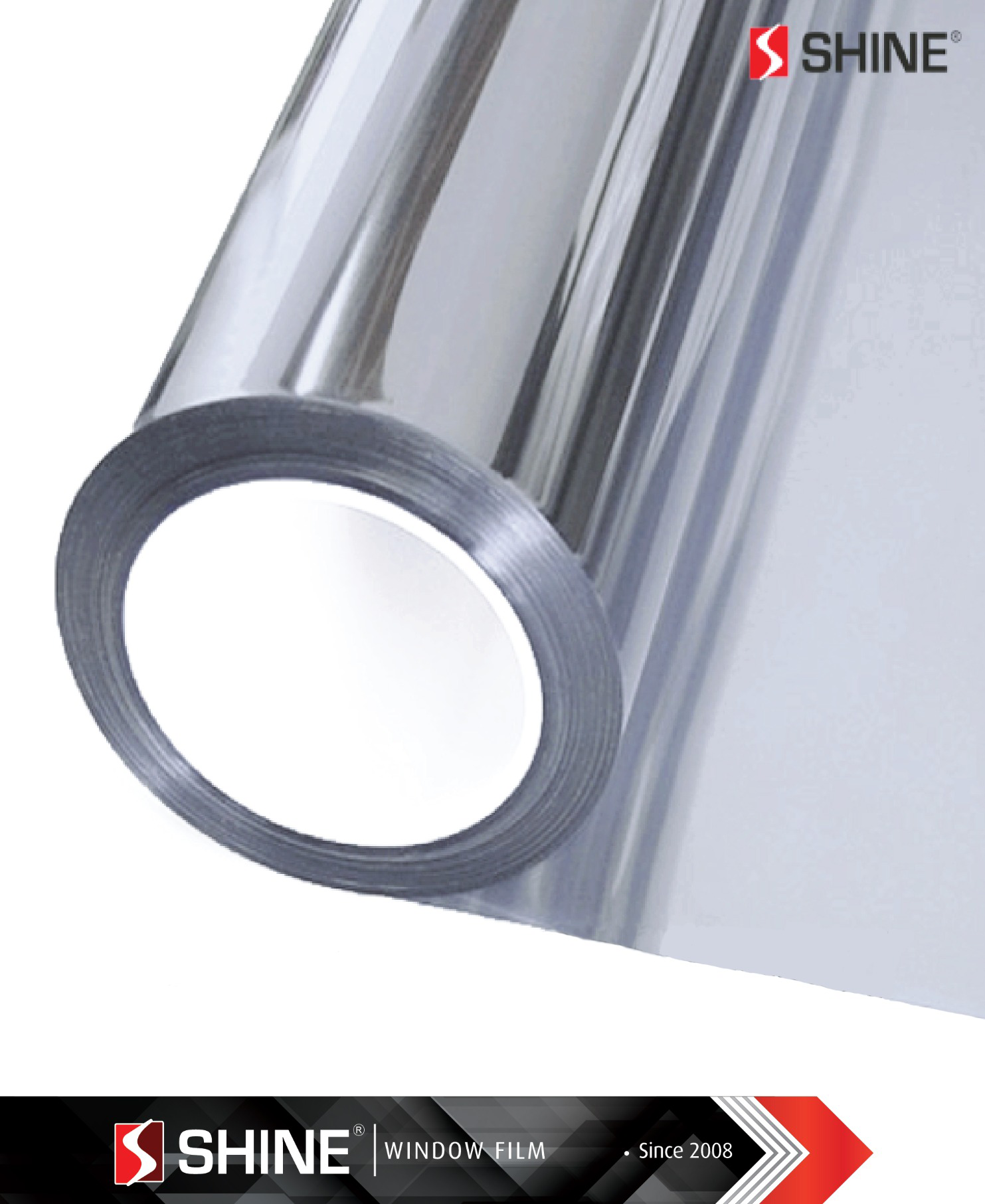

MultiplX ML 70
Product Specifications:
Category
Architectural / Automobile
Series
MultiplX
Construction:
Thickness
2ply / 2 Mil
Technology
Multilayer Sputter 12Layer
Color
Light Grey
Adhesive
Pressure Adhesive
Adhesive
10 Years
Solar Performance:
Visible Light Transmittance 70%
Ultra Violet Rejection 99%
Infrared Rejection (1400nm) 90%
Infrared Rejection (940nm) 73%
Solar Energy Absorbance 55%
Full Infrared Rejection 82%
Solar Heat Gain Coefficient 0.48
Total Solar Energy Rejected 52%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.
Product Code

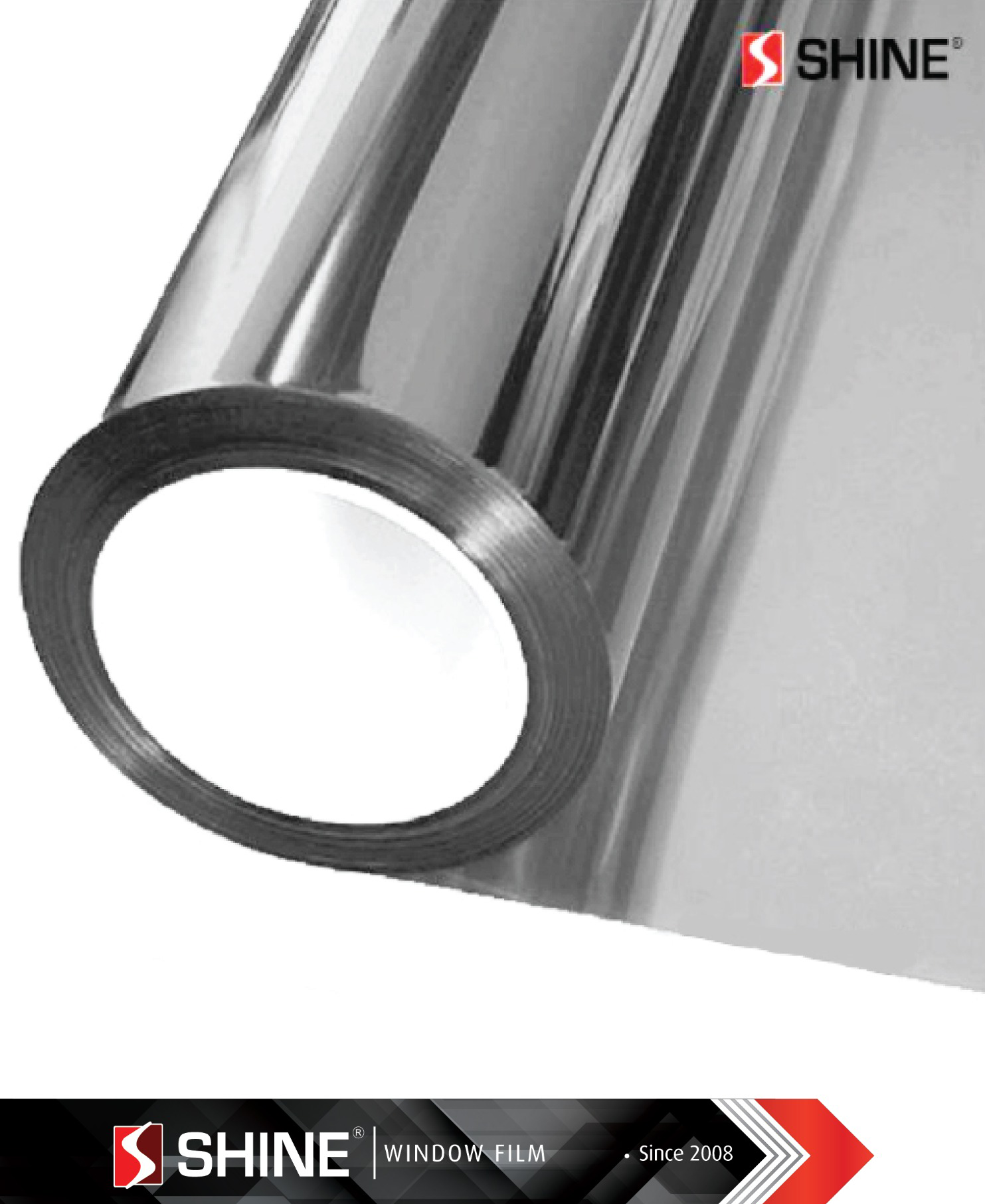

MULTIPLX ML 50
Product Specifications:
Category
Architectural / Automobile
Series
MultiplX
Construction:
Thickness
2ply / 2 Mil
Technology
Multilayer Sputter 12Layer
Color
Light Grey
Adhesive
Pressure Adhesive
Warranty
10 Years
Solar Performance:
Visible Light Transmittance 50%
Ultra Violet Rejection 99%
Infrared Rejection (1400nm) 92%
Infrared Rejection (940nm) 06%
Full Infrared Rejection 85%
Solar Heat Gain Coefficient 0.35
Total Solar Energy Rejected 65%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.
Product Code
MultiplX ML 40
Product Specifications:
Category
Architectural / Automobile
Series
MultiplX
Construction:
Thickness
2ply / 2Mil
Technology
Multilayer Sputter 12 Layer
Color
Medium Grey
Adhesive
Pressure Adhesive
Warranty
10 Years
Solar Performance:
Visible Light Transmittance 40%
Ultra Violet Rejection 99%
Infrared Rejection (1400nm) 91%
Infrared Rejection (940nm) 77%
Full Infrared Rejection 84%
Solar Heat Gain Coefficient 0.29
Total Solar Energy Rejected 71%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.
Product Code

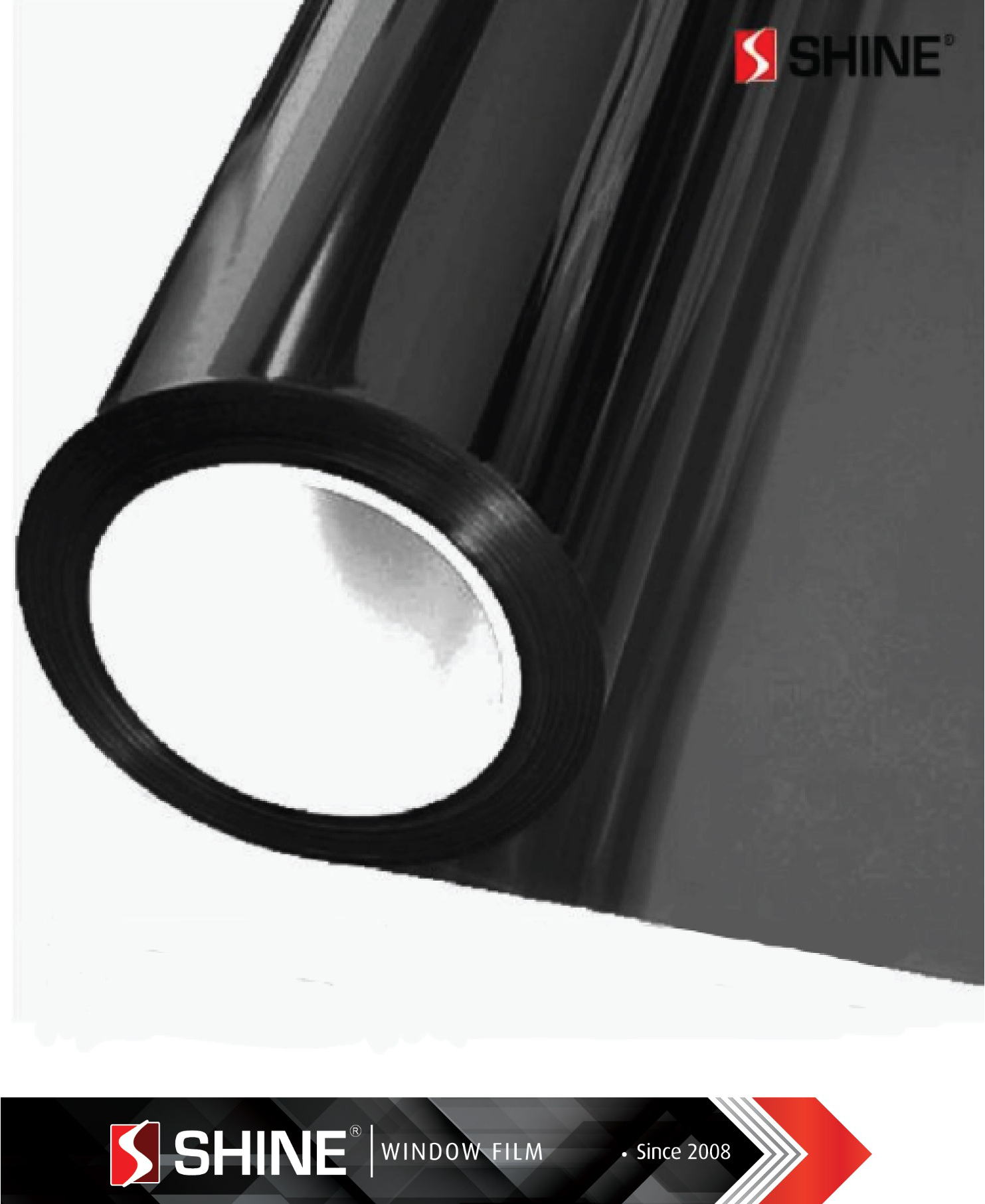

MultiplX ML 20
Product Specifications:
Category
Architectural / Automobile
Series
MultiplX
Construction:
Thickness
2 ply / 2 Mil
Technology
Multilayer Sputter 12 Layer
Color
Medium Grey
Adhesive
Pressure Adhesive
Warranty
10 Years
Solar Performance:
Visible Light Transmittance 20%
Ultra Violet Rejection 99%
Infrared Rejection (1400nm) 95%
Infrared Rejection (940nm) 86%
Full Infrared Rejection 91%
Solar Heat Gain Coefficient 0.13
Total Solar Energy Rejected 87%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.
